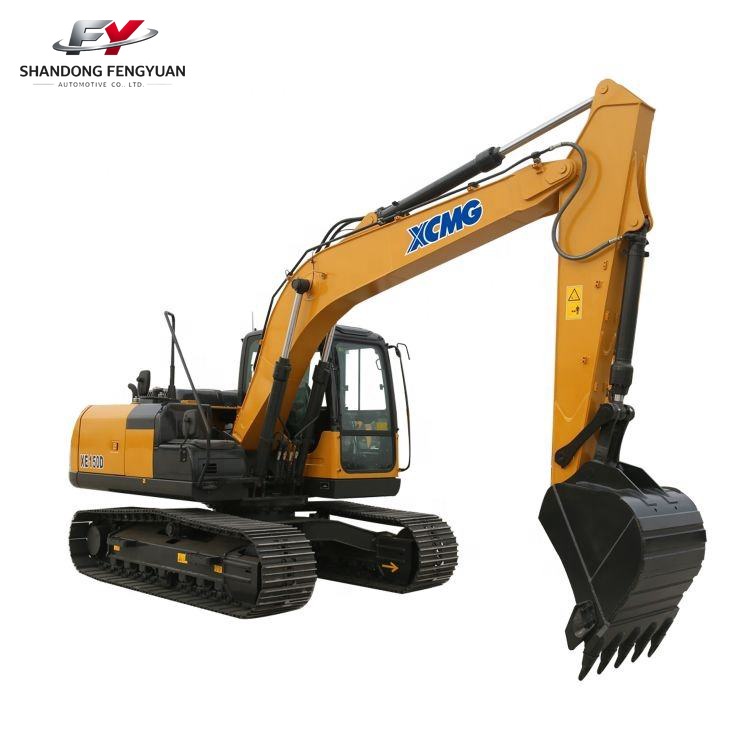

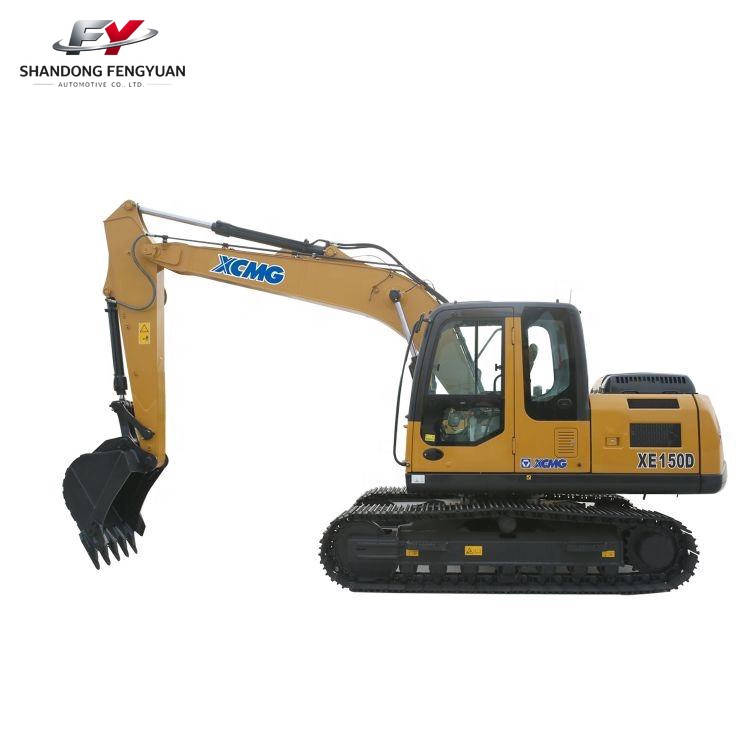

XCMG Excavators XE150D

Name: XCMG Excavators XE150D
SKU: 0

China National Heavy Duty Truck Group Co., Ltd. We are manufacturer of SINOTRUK GROUP, offer the best quality and new trucks, HOWO HOWO A7 and so on. Choose us, Choose best partner! Join us now !

+8615194017889

admin@truckparts-export.com

Get in Touch

Product Parameters

XCMG Excavators XE150D

Model			XE150D
Bucket capacity		m3	0.6
Standard bucket width		mm	1,000
Operation weight		kg	14,400
Dimension (in transportation)	Overall length	mm	7,801
	Overall width	mm	2,590
	Overall height	mm	2,850
	Min. clearance	mm	478
Engine	Model		4BTAA3.9
	Total displacement	L	3.927
	Rated output power	KW/rpm	85.4/2200
Digging performance	Max. digging height	mm	8,641
	Max. dumping height	mm	6,181
	Max. digging depth	mm	5,538
	Max. vertical digging depth	mm	4,727
	Max. digging radius	mm	8,296
	Boom deflection angle	°
	Min. slew radius	mm	2,325
	Min. rear slew radius	mm	2,325
	Bucket digging force	kn	85
Track type			Steel
Track width		mm	600
Travel system	Track length	mm	3,660
	Wheel base	mm	2,910
	Track gauge	mm	1,990
	Travel speed (Gear I/II)	km/h	5.21/3.16
	Gradeability	%	70
Slew speed		rpm	12.3
Bulldozing plate	Bulldozing plate width	mm
	Bulldozing plate height	mm
	Lifting distance	mm
Hydraulic pump type			Variable pump×2 +gear pump×1
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	250
Hyraulic oil tank capacity		L	130
