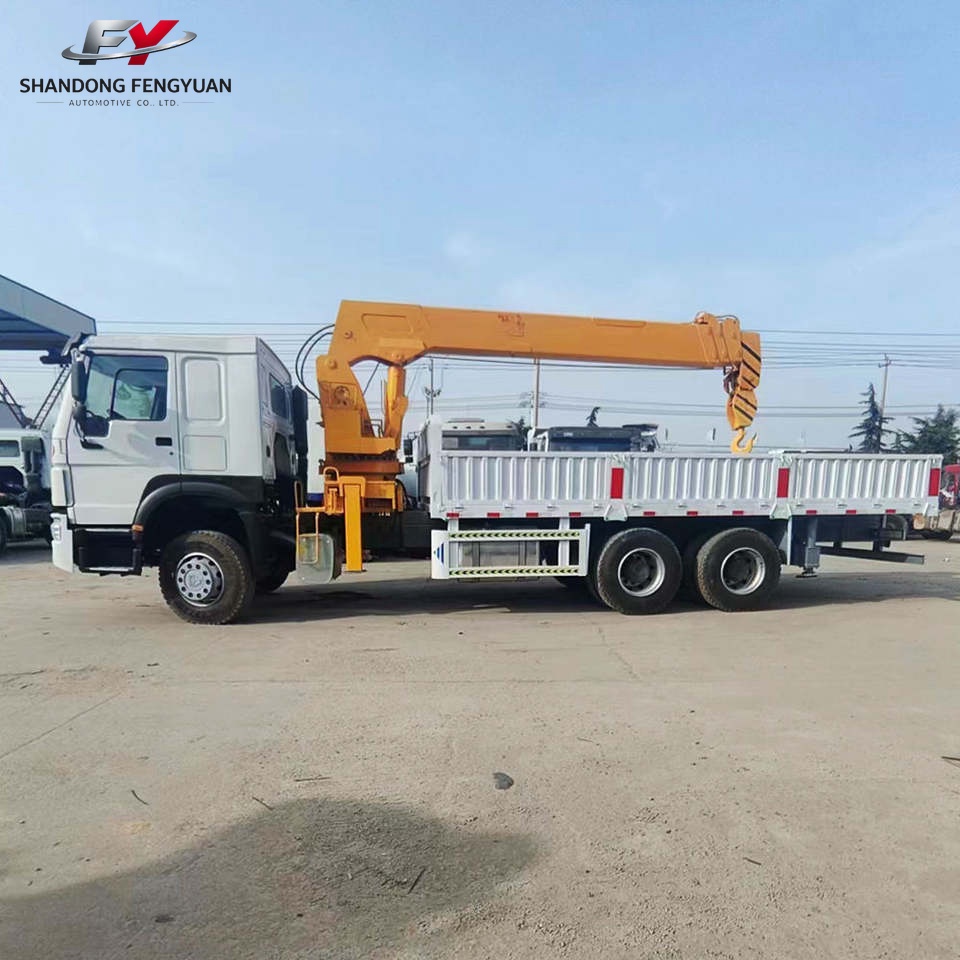

HOWO Chassis with 8T/10T Crane

China National Heavy Duty Truck Group Co., Ltd. We are manufacturer of SINOTRUK GROUP, offer the best quality and new trucks, HOWO HOWO A7 and so on. Choose us, Choose best partner! Join us now !
+8618595245419
admin@truckparts-export.com
Get in Touch

Product Parameters


HOWO Chassis with 8T/10T Crane

SPECIFICATION FOR CRANE
Max Lifting Capacity8000 kg
Max Lifting Moment20 T.M
Max Oil Flow of Hydraulic System55 L/min
Max Pressure of Hydraulic System27 MPa
Rotation AngleAll Rotation
Max.Working radius (m)11.5 m
Supporting LegTwo Supporting Leg with Hydraulic Control
SPECIFICATION FOR CHASSIS
Dimension(Lx W xH)（mm）10350×2496×3850
Loading Capacity (Ton)25 Ton
Cargo body size (LxWxH) (mm)6750×2300×600 ,Bottom 3 mm, Side 2 mm
Approaching angle/Departure angle（°）16/15
Overhang(front/rear) (mm)1500/2600
Wheel base (mm)4600+1350
Max speed（km/h）102
Curb weight（kg）14525
Engine(Steyr technology, made in China)ModelWD615.69，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and intercooling, directly injection
Fuel typeDiesel
Power, max（kw/rpm）336HP
EmissionEUROII
Fuel tanker capacity（L）400L aluminum oil tank
TransmissionModelHW19710, 10 speeds forward and 2 reverse
Brake systemService brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Steering systemModelZF8118
Front axleHF9
Rear axleHC16
Tire12.00R22.5 (Radial Tyre)
Electrical systemBattery2X12V/165Ah

Alternator28V-1500kw


Starter7.5Kw/24V

Accessories Collection

  • 10011 (1)
  • 10021 (1)
  • 10006 (1)
  • 10007 (1)
  • 10002 (1)
  • 10013 (1)
  • 10006 (1)
  • 10018 (1)
  • 10008
  • 10015 (1)

Factory Display

  • Factory
  • Factory
  • Factory
  • Factory
  • Factory
  • Factory
  • Factory
  • Factory

FAQ

Q: How long does it take to ship from China to Lagos, Nigeria? Is there an urgent plan?
A: The standard shipping time is 35-45 days (including customs clearance), and we offer two acceleration options:
West Africa Express: Transfer through Djibouti, compressed to 25 days (+15% freight)
Emergency air freight: For brake safety components weighing ≤ 50kg per piece, 7-day direct delivery (contact customer service to activate)


Q: What should be done if winter land transportation in Central Asia is affected by ice and snow?
A: We adopt a 'dual mode guarantee' in Central Asia:
Winter pre storage: Starting from November, high demand parts (antifreeze/cold start motors) will be pre stored in the Almaty warehouse
Resilient transportation network:
Kazakhstan: Cooperate with SnowRoad fleet for anti-skid chain transportation
Afghanistan Channel: Backup Cross border Route to Avoid Blizzard Areas


Q: What is the minimum order quantity (MOQ)? Do you support mixed batches?
A: Adopting a flexible supply chain policy:
Standard parts: minimum order of 1 box (such as brake pads/filter cartridges)
Customized parts: engine cylinder block, etc. need to be ≥ 50 pieces
Mixed batch privilege: Gold medal customers can cross category consolidation (such as brake parts+electrical parts)
